Mid-Duty Portable Fume Extractor

MID-DUTY
PORTABLE FUME EXTRACTOR

FX-PT-M-2HP

Ideal for:

  • Welding Fumes
  • Smoke
  • Dust
Download PDF Cut Sheet
Download Owners Manual
Quote Now
Get an Instant Expert Quote

Description

Engineered for fabrication shops that demand real performance, the Mid-Duty Portable Fume Extractor delivers production-level suction with a powerful 2 HP motor and up to 1,200 CFM of airflow, depending on the fume hood size. This portable system captures weld fume, laser smoke, and airborne contaminants directly at the source to help keep your team safe and your shop clean.

A smooth-moving articulating extraction arm, fully welded steel housing, and multi-stage filtration system make this unit ideal for demanding industrial environments. Locking casters, compact dimensions, and a sturdy handle ensure the Mid-Duty Portable can be easily positioned wherever you need reliable source capture.

Features

Diagram showing the main features of the Mid-Duty Portable Fume Extractor.
  • Multi-Stage Filtration System: Removes sparks, large debris, fine particulate, and optional HEPA-level toxins for demanding applications.
  • Fully Welded Steel Housing: Built for years of heavy use. Plugs into a standard 20-amp circuit—no special wiring or complex installation required.
  • Effortless Maintenance: Wide access door, tool-less filter retention system, and washable components help maintain peak performance.
  • Articulating Extraction Arm: Smooth, precise positioning with 360° rotation keeps capture exactly where it’s needed—at the source.
  • Portable & Compact: Minimal footprint, locking casters, and a sturdy handle make it easy to move between workstations.

Technical Data

Mid-Duty Portable Fume Extractor technical view

FX Mid-Duty Portable

Airflow: 1,200 CFM
Motor: 2 HP
Noise Level: 70.75 dBA
Machine Dimensions: 35.5" W x 32.7" L x 45.9" H
Packing Dimensions: 36.0" W x 34.1" L x 51.4" H
Net Weight: 302.3 lbs

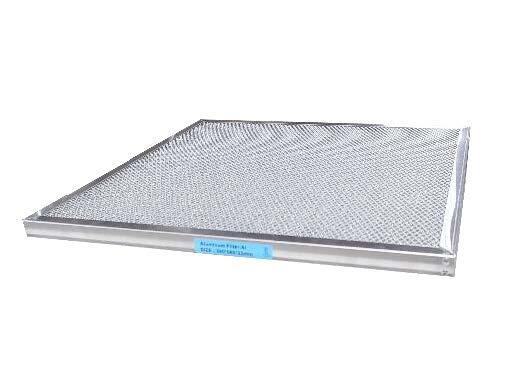

Aluminum Mesh - Captures sparks and steel chips

  • Routinely inspect for large chips, debris or damage to the mesh.
  • Washable and reusable, must dry completely before reinstalling.
  • Replace when damaged or when cleaning is no longer effective.

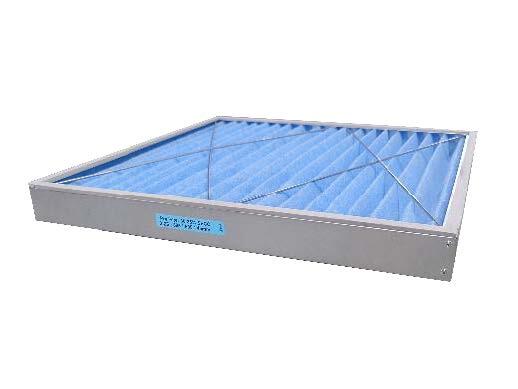

Pleated Pre-Filter - Captures 35% of the 3-10 micron fine particles

  • Routinely inspect for damage.
  • To clean, vacuum or use soft bristle brush to release particulate.
  • Replace when cleaning is no longer effective and does not improve airflow.

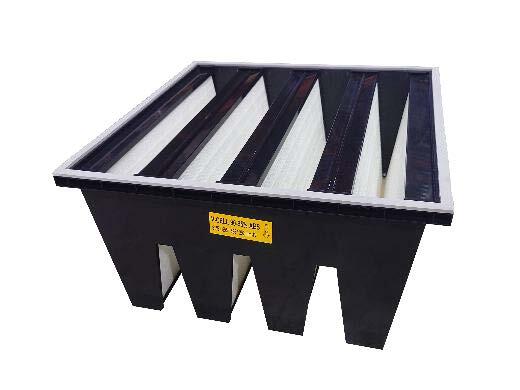

V-Cell Filter - Captures fine particulate

  • Do not wash or vacuum the V-Cell filter.
  • Routinely inspect the gasket at the top of the V-Cell filter and replace if damaged.
  • Replace when cleaning/replacing the mesh and pleated pre-filters no longer improves airflow.

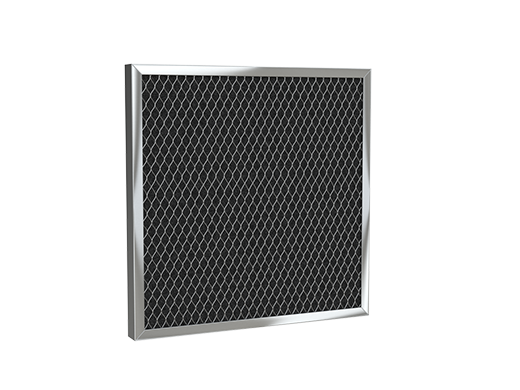

(Optional) Carbon Filter - Mitigates Odors

  • Do not wash or vacuum the Carbon filter.
  • Routinely inspect for large chips, debris or damage to the filter media.
  • Replace when damaged or when odor mitigation is no longer effective.

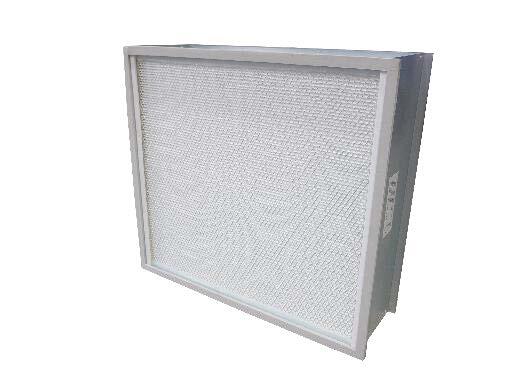

(Optional) HEPA Filter - Captures 99.99% of 0.3 micron particulate

  • Do not wash or vacuum the HEPA filter.
  • Routinely inspect for damage and debris.
  • If replacing the aluminum mesh, pleated pre-filter and V-Cell filter does not improve airflow, replace the HEPA filter.

Warranty

It is our goal to ensure that customers are 100% satisfied with their purchases, that’s why our products are designed to deliver high-quality standards and long-lasting performance.


As the original purchaser, we guarantee that your Fume Xtractors extraction system will remain free from defects in material within two years of its original purchase. If such defects appear under normal usage, we will repair or replace your product at no cost to you.


Please refer to the Owners Manual for more information about our Two Year Limited Warranty.
