Telescoping Fume Arm

Telescoping Fume Extractor Arms


  • Best for confined spaces
  • Rugged steel construction
  • Wall or post mountable
Get a Custom Quote From an Expert within 24 Hours


SKU Dimensions
FX-TA-0605 6" dia. / 5' long
FX-TA-0606 6" dia. / 6' long

We also make a Hanging Fume Arm & a Standing Fume Arm.

*Also available in Stainless Steel upon request*


Telescoping Fume Arms are ideal for confined spaces because they're compact but extend for extra reach when needed.

FumeXtractors Telescopic Fume Extraction Arms are built to exhaust and filter welding fume and smoke above the source. They're the most popular companion to our Welding Booths and feature a flanged suction hood for 2x the suction distance.

The telescoping fume extraction arm shown extending it's length.
A machine operator working on a welding project while the fume arm captures contaminants above the source.

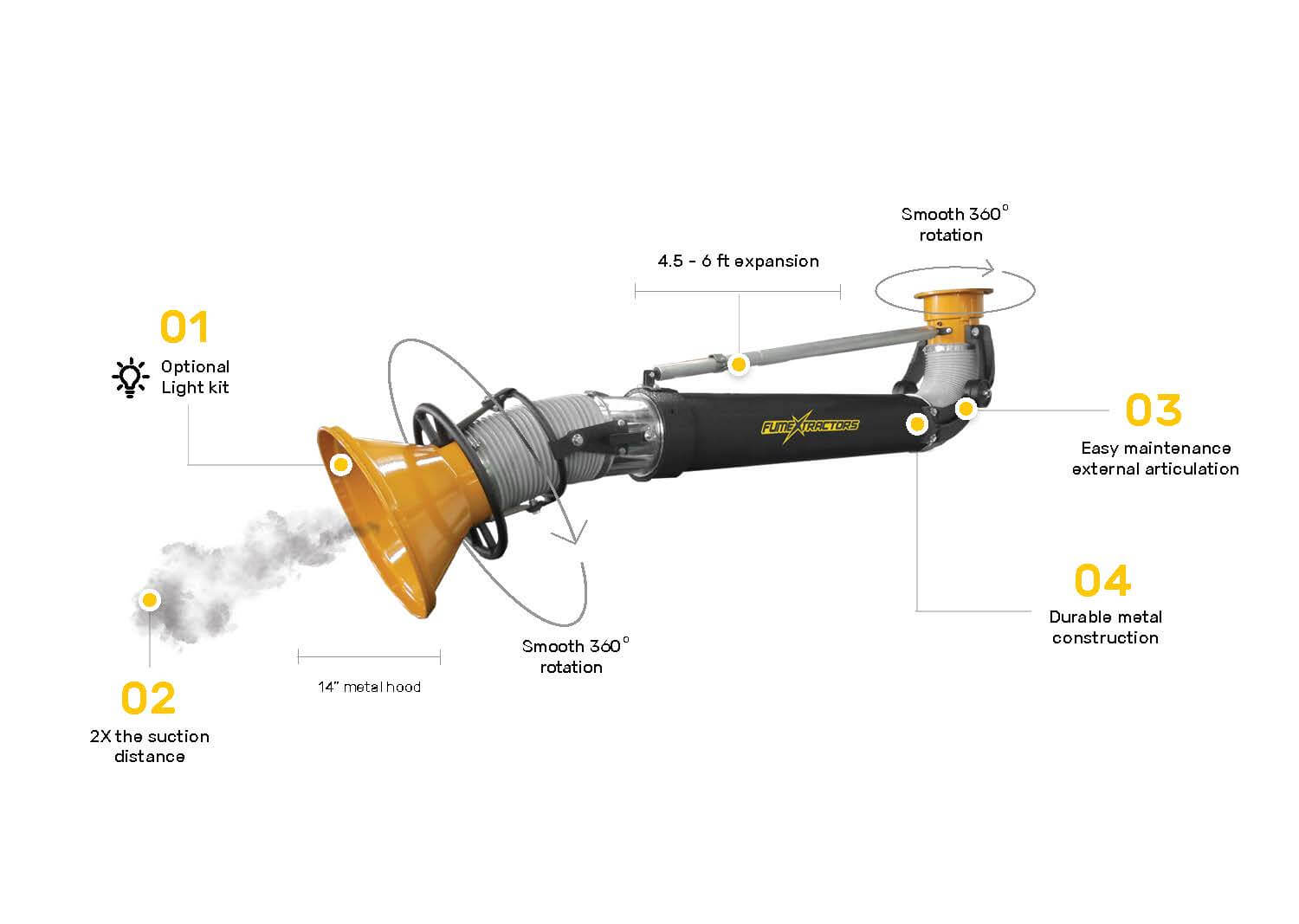

A diagram showing each feature of the telescoping fume extraction arm.

Technical Data

Telescoping Fume Arm
Airflow: 750 - 1200 CFM
Arm Diameter: 380 sq. ft.
Length: 7 ft, 10 ft, & 14 ft
Hood Diameter: 14 inches


It is our goal to ensure that customers are 100% satisfied with their purchases, that’s why our products are designed to deliver high-quality standards and long-lasting performance.

As the original purchaser, we guarantee that your FumeXtractors extraction system will remain free from defects in material within two years of its original purchase. If such defects appear under normal usage, we will repair or replace your product at no cost to you.

Please refer to the Owners Manual for more information about our Two Year Limited Warranty.
